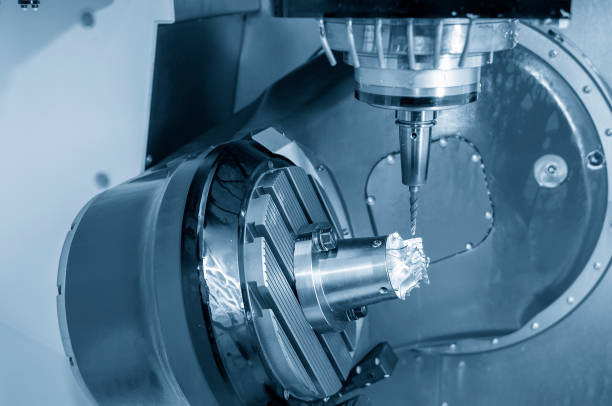

a high precision 5-axis machine cutting the sample part with rotary attachment
You’ve probably heard much about 5-axis CNC machines in the metalworking industry. These machines offer flexibility, precision, and the ability to handle complex parts in ways less advanced machines can’t. But with all the technical specs and options out there, picking the right one might seem like a challenge. You must understand your needs to choose the suitable 5-axis CNC machine, whether you’re after more precision, speed, or versatility. In this guide, we’ll explore the essential things every fabricator should know before choosing a CNC 5-axis machine, helping you navigate the options and make the best choice for your shop.
Key Considerations for Choosing 5 Axis CNC Machines
Choosing a suitable CNC 5-axis machine can seem overwhelming with all available options. It’s not just about picking the most expensive or advanced machine; it’s about finding the one that suits your needs. You need to consider several factors, so taking it step by step can help you make the best choice.
Here are the key considerations you should keep in mind before making your choice:
Material Compatibility
This might seem obvious, but you must ensure the machine you choose can handle the materials you plan to work with. Some 5-axis CNC machines are better suited for soft metals like aluminum, while others are built to cut through more rigid materials like titanium or steel. If you primarily work with one type of metal, pick a machine optimized for that. But if you work with a mix of materials, you’ll want a versatile machine. Keep in mind that using a machine on materials it’s not designed for can wear it out faster and lower the quality of your parts.
Workpiece Size and Machine Capacity
The size of the parts you plan to fabricate is another major factor. If you intend to fabricate small precision parts, a compact 5-axis machine may be enough. But if you’re working with larger components, especially in industries like aerospace or automotive, you need a machine with a bigger working envelope. Consider the size of the table, the range of motion, and how much space the machine takes up. Having too small of a machine will limit your production, and if it’s too large, you might end up paying for a capacity you won’t use.
Machine Speed and Precision
Speed and precision are essential in CNC machining, especially for metal fabrication. Some 5-axis CNC machines are designed for high-speed machining, which is perfect if you need quick turnaround times for mass production. However, speed shouldn’t come at the cost of precision. If you’re working on parts that require extreme accuracy, choose a machine that offers top-notch precision.
Control System and Software
Not all CNC 5-axis machines come with the same software or control systems. Some are designed to be very user-friendly, while others might have a steeper learning curve. The control system is the brain of the machine, so you want one that fits well with your team’s skill set. Look for machines with intuitive software, especially if you’re running complex parts that need precise movements. Also, check if the software can easily integrate with your current design tools (like CAD/CAM systems) to make the transition smoother.
Maintenance and Technical Support
Like any high-tech equipment, 5-axis CNC machines need regular maintenance to stay in top working condition. Some machines are easier to maintain than others, so it’s best to choose one that won’t be a hassle to keep running. Make sure to research how easy it is to get replacement parts, how reliable the manufacturer’s technical support is, and whether they offer prompt service. Choosing a machine with strong support services can save you a lot of downtime and headaches later.
Budget and ROI
5-axis CNC machines can be a significant investment. While it’s tempting to go for the best and latest technology, you should weigh the machine’s price against the return on investment (ROI). Think about how quickly the machine will pay for itself through increased productivity, fewer errors, and better output quality.
How to Choose 5 Axis CNC Machine
5-axis CNC milling machine cutting automotive parts with solid ball endmill tools
Choosing the right 5-axis CNC machine can make a massive difference for your CNC machine shop, especially if you deal with complex parts or need precision at every turn. But to make an informed choice, you must understand the nitty-gritty details of what makes a machine tick. So take your time, weigh your options, and go with the machine that ticks all the boxes for your needs.
Here’s a step-by-step guide on the key factors every metal fabricator must know before purchasing:
Understand Your Application
Before diving into specs, it’s crucial to know what you’ll be using the machine for. 5-axis machines constitute a significant upgrade from 3-axis machines, especially for jobs that need high precision. For example, in aerospace manufacturing, the margin for error is incredibly slim, often measured in microns (1 micron = 0.001 millimeter). Moreover, the complex geometries involved in turbine blades or engine components demand movement flexibility that only a 5-axis CNC machine can offer. If you’re a fabricator who deals with such intricate parts, this machine will allow you to cut down on setups and save time. So, always consider the types of CNC parts you plan to create. This will point you in the right direction in terms of machine capacity, speed, and precision.
Consider the Machine’s Size and Workspace
The size of a 5-axis machine directly impacts the size of the parts you can fabricate. Depending on the model, a typical 5-axis machine will have a work envelope ranging from 300 mm to 2,000 mm (about 11.8 to 78.7 inches). The average shop might not need the largest model, but knowing your typical part size will help narrow the options.
Also, consider the workspace footprint. For instance, large machines like the DMU 340 P require a large floor space. Therefore, if your shop doesn’t have that kind of space, a more compact model like the Mikron MILL P 500 might be a better fit. It has a smaller footprint but is still capable of high precision.
Check the Spindle Speed and Torque
The spindle is the heart of your machine, and spindle speed and torque are crucial for the efficiency of your operations. These performance indicators directly impact how fast and efficiently you can cut different materials. For example, if you’re working with softer metals like aluminum, high spindle speeds (up to 30,000 RPM) are ideal. They’ll allow you to machine parts quickly. This is critical when dealing with large production runs.
However, if you’re machining harder metals like titanium, you’ll want a spindle with high torque instead of just high speed. Machines like the Haas UMC-750 have up to 90 foot pounds torque outputs at over 2,000 RPM. Thus, this machine allows you to take deeper cuts in rigid materials without overloading the spindle. Make sure the spindle specifications align with your material needs.
Look at Axis Movement and Accuracy
With a 5-axis machine, you can access rotational movement around the X, Y, and Z axes. They allow for intricate cuts and complex shapes that would be impossible on a standard 3-axis machine. But how fluid and accurate is that movement? The smoother and more precise the axis motion, the better the machine will perform for complex parts that require intricate cutting angles. Most modern 5-axis machines have an accuracy of ±5 microns, but high-end models can go even further. Some ultra-precise machines can achieve accuracies as tight as ±2 microns. Some machines have more rigid setups, while others offer higher flexibility for continuous, complex cutting. Ensure the machine can handle the level of detail and flexibility you require.
Evaluate Software and Controls
Modern 5-axis machines are typically paired with advanced control systems like Siemens SINUMERIK or FANUC, which offer user-friendly interfaces and support for complex geometries. Advanced machines may include features like automatic collision detection, real-time toolpath optimization, and adaptive control settings that adjust the feed and speed during operation to improve precision and reduce tool wear. Besides, machine shops with upgraded control systems and adaptive features have increased productivity with fewer tool changes and reduced scrap rates. If you plan to scale up your operations, a machine with good automation capabilities can save you time and effort in the long run.
Maintenance and Support
No matter how advanced your machine is, it will require regular maintenance. You don’t want a machine that’s constantly breaking down or difficult to service. So, check how easy it is to access parts and perform repairs. It’s worth investing in a machine from a manufacturer that offers comprehensive after-sales support. Some high-end manufacturers provide remote diagnostics and predictive maintenance systems that alert you to potential issues before they become costly breakdowns. This can significantly reduce downtime.
Price vs. Long-Term Value
Price is always a consideration, but at the same time, you must also consider the long-term value. High-end machines from brands like DMG Mori or Mazak might come with a higher upfront cost, but their reliability, accuracy, and ability to reduce setup times often pay off in the long run. Machines with lower costs might save you money initially but could lead to higher maintenance costs and lower precision. And this can affect your product quality over time. Above all, investing in a reliable machine can position your machine shop to take advantage of the growing demand for advanced CNC parts.
Conclusion
Picking the suitable 5-axis CNC machine boils down to knowing what your shop needs. Every detail plays a role in your final choice, from machine size and speed to the advanced tech features it offers. By carefully considering these key factors, you’ll get a machine that boosts productivity, increases accuracy, and helps your machine shop grow. Take the time to assess these key factors, and you’ll make an investment that pays off in quality and efficiency.
